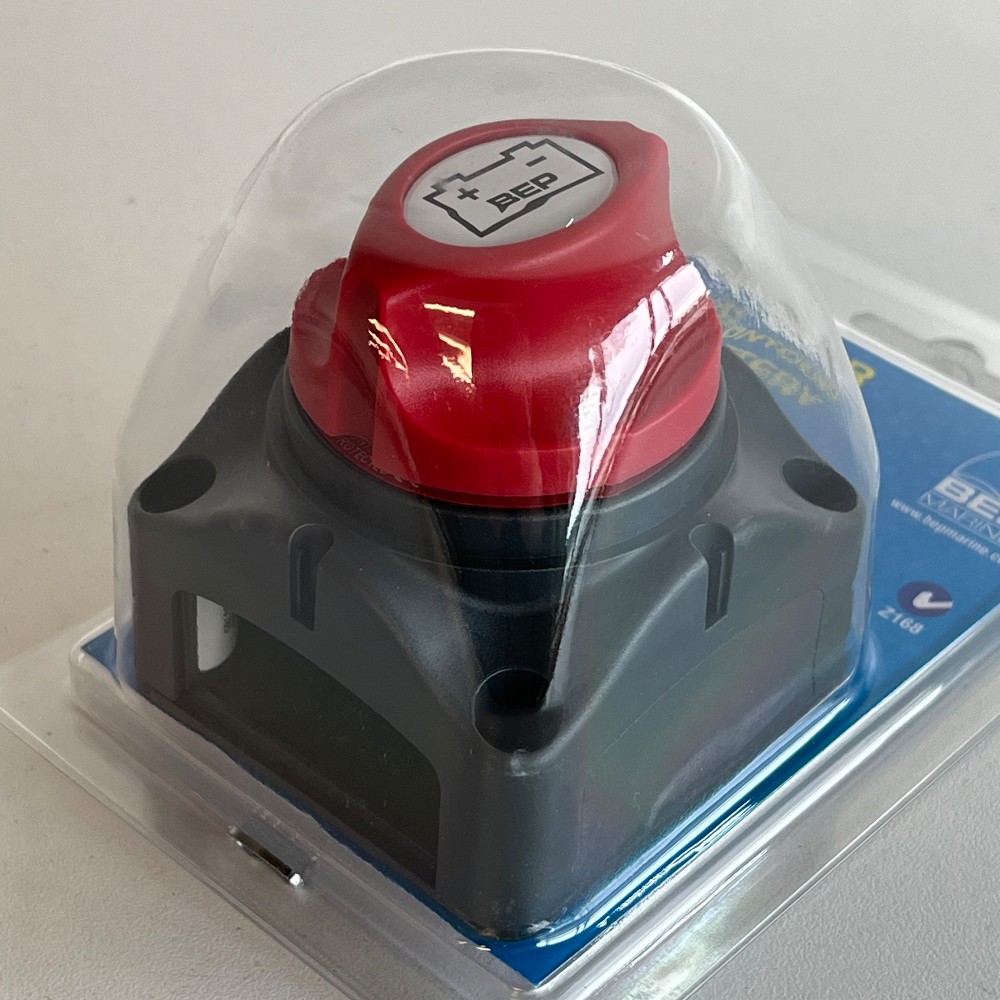

BEP Marine Mini Battery Selector Switch 701S
SKU:
$
in stock
The 701S is the most compact selector switch available on the market. While BEP recommends isolated battery systems as outlined with their distribution clusters, the 701S provides a simple economical way of separating two batteries. BEP Marine Battery Switch Test Procedures (UL 1107) Continuous (1 hour), intermittent (5 minutes) and Cranking (engine starting - 10 seconds). The test is to determine the maximum current the switch can handle for the stated time, without the rear terminals exceeding 100 deg C (212 deg F) above the ambient temperature. The continuous and intermittent ratings are tested at 110 percent of specified ratings. All BEP switches are tested Independently to this specification by a 3rd party laboratory.
Features:
Housed in the same dimensions as the 701, and includes the same removable side plates and back cover
Tin-plated copper studs and nuts
Ignition-protected
Specifications:
Dimensions (L x W x H): 2.75" x 2.75" x 3" (69 x 69 x 75 mm)
Continous: 200A
Crank (10 sec): 1000A
Voltage: 48V DC
Operation: 1-2-Both-Off
Studs: 3x 5/16" (8 mm)
Cable to meet rating: 1/0 (50 sq.mm.)
